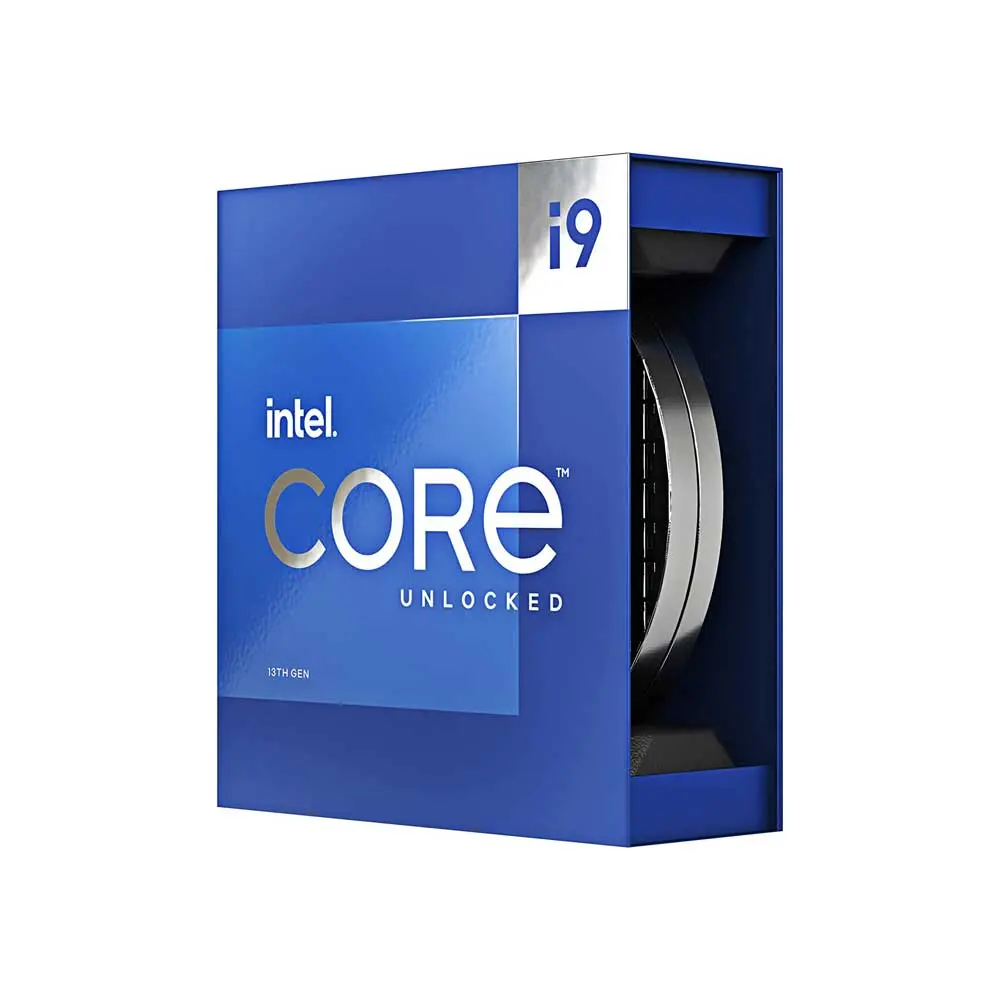

Intel Core i9 13900K 13Th Gen Processor
Intel Core i9 13900K Processor
Price -50484Inr
Usd -589$
Core / Thraeds - 24 core / 32 Threads
Clock Speed Fequency - 3.00 Ghz
Socket - Intel 1700 Scoket
Intel Core i9 13900K Processor The Intel Core i9-13900K is a desktop processor with 24 cores, launched in September 2022, at an MSRP of $589. It is part of the Core i9 lineup, using the Raptor Lake architecture with Socket 1700. Intel Hyper-Threading technology is available and effectly doubles the core-count of the P-Cores, to a total of 32 threads. Core i9-13900K has 36 MB of L3 cache and operates at 3 GHz by default, but can boost up to 5.8 GHz, depending on the workload. Intel is building the Core i9-13900K on a 10 nm production process, the transistor count is unknown. You may freely adjust the unlocked multiplier on Core i9-13900K, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.
Physical
| Socket: | Intel Socket 1700 |
|---|---|
| Foundry: | Intel |
| Process Size: | 10 nm |
| Die Size: | 257 mm² |
| Package: | FC-LGA16A |
| tCaseMax: | 72°C |
| tJMax: | 100°C |
Processor
| Market: | Desktop |
|---|---|
| Production Status: | Active |
| Release Date: | Sep 27th, 2022 |
| Retail Launch: | Oct 20th, 2022 |
| Launch Price: | $589 |
| Part#: | SRMBH |
Performance
| Frequency: | 3 GHz |
|---|---|
| Turbo Clock: | up to 5.8 GHz |
| P-Core Turbo: | 5.4 GHz |
| P-Core Boost 3.0: | 5.7 GHz |
| E-Core Frequency: | 2.2 GHz up to 4.3 GHz |
| Base Clock: | 100 MHz |
| Multiplier: | 30.0x |
| Multiplier Unlocked: | Yes |
| TDP: | 125 W |
| PL1: | 253 W |
| PL2: | 253 W |
| PL2 Tau Limit: | Unlimited |
Architecture
| Codename: | Raptor Lake-S |
|---|---|
| Generation: | Core i9 (Raptor Lake) |
| Memory Support: | DDR4, DDR5 |
| DDR4 Speed: | 3200 MT/s |
| DDR5 Speed: | 5600 MT/s |
| Memory Bus: | Dual-channel |
| ECC Memory: | Yes |
| PCI-Express: | Gen 5, 16 Lanes (CPU only) |
| Secondary PCIe: | Gen 4, 4 Lanes |
| Chipsets: | H610, B660, H670, Q670, Z690, W680, B760, H770, Z790 |
Core Config
| # of Cores: | 24 |
|---|---|
| # of Threads: | 32 |
| Hybrid Cores: | P-Cores: 8 E-Cores: 16 |
| SMP # CPUs: | 1 |
| Integrated Graphics: | UHD Graphics 770 |
Features
|
Cache
| Cache L1: | 80 KB (per core) |
|---|---|
| Cache L2: | 2 MB (per core) |
| Cache L3: | 36 MB (shared) |
| E-Core L1: | 96 KB (per core) |
| E-Core L2: | 4 MB (per module) |
Notes
| Intel UHD Graphics Dynamic Frequency: 300-1650MHz |
Intel Core i9 13900K Processor With a TDP of 125 W, the Core i9-13900K consumes a lot of power, so good cooling is definitely needed. Intel’s processor supports DDR4 and DDR5 memory with a dual-channel interface. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption. For communication with other components in the computer, Core i9-13900K uses a PCI-Express Gen 5 connection. This processor features the UHD Graphics 770 integrated graphics solution.
Hardware virtualization is available on the Core i9-13900K, which greatly improves virtual machine performance. Additionally, IOMMU virtualization (PCI passthrough) is supported, so that guest virtual machines may directly use host hardware. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, Intel is including the newer AVX2 standard, too, but not AVX-512.
